Description

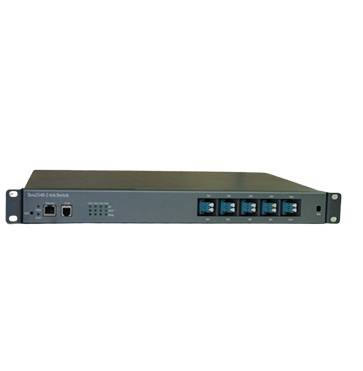

The Tera2140-2 is 1~2 channel 1:4 single mode or multimode optical switch, mainly for optical transmission protection, also could be integrated Auto-test platform for manufacture，1U standard box.
Ø 220V Power or DC Power(Optional)；
Ø 2 Channel 1:4 optical switch channel;
Ø Support single-mode and multi-mode;
Ø Remote control by compute.
Power meter parameter
|
parameter |
Min |
Typical |
Max |
Unit |
Note |
|
Wavelength Range |
1260 |
|
1650 |
nm |
|
|
Insertion Loss 1, 2 |
|
0.8 |
|
dB |
|
|
Return Loss 1, 2 |
50 |
|
|
dB |
Wi connector |
|
Crosstalk 1 |
55 |
|
|
dB |
＠15dB |
|
PDL |
|
≤0.05 |
dB |
＠15dB |
|
|
WDL |
|
≤0.25 |
dB |
|
|
|
Repeatability |
|
≤±0.02 |
dB |
|
|
|
Durability |
≥ 10 Million |
|
|
Cycles |
|
|
Switching Time |
|
≤8 |
|
ms |
|
|
Optical Power |
|
10 |
|
W |
|
|
Operating Temperature |
|
-20 ~ +70 |
|
℃ |
|
|
Storage Temperature |
|
-40 ~ +85 |
|
℃ |
|
|
Humility |
5 |
|
90 |
% |
Non-Condensing |
|
Weight |
|
5 |
|
Kg |
|
|
Size |
(L)27.0×(W)12.6×(H)8.2 ±0.2 |
mm |
|
||
